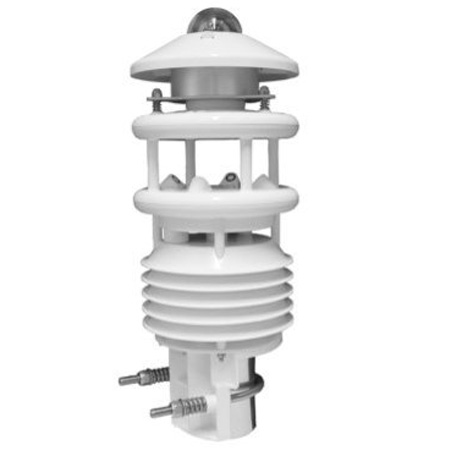

Lufft WS510-UMB Smart Weather Sensor
First and only Smart Weather Sensor with integrated Kipp & Zonen CMP10 Pyranometer (secondary standard)
From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection for measuring: Air temperature, relative humidity, air pressure, wind direction, wind speed and radiation. One external temperature or rain sensor is connectable.
| Parameters measured: | Temperature, relative humidity, air pressure, wind direction, wind speed, radiation |
| Measurement technology: | Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, Kipp&Zonen/Radiation |
| Product highlights: | Wind detection with bird-proof construction. Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol. |
| Interfaces: | RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and SDI-12 |
Advantages of the Smart Weather Sensor WS510
- Measuring wind direction and speed – reduced risk of bird nesting thanks to roofed construction
- All-in-one housing concept of a compact weather sensor combining 6 measurement parameters in one housing with only one cable connection

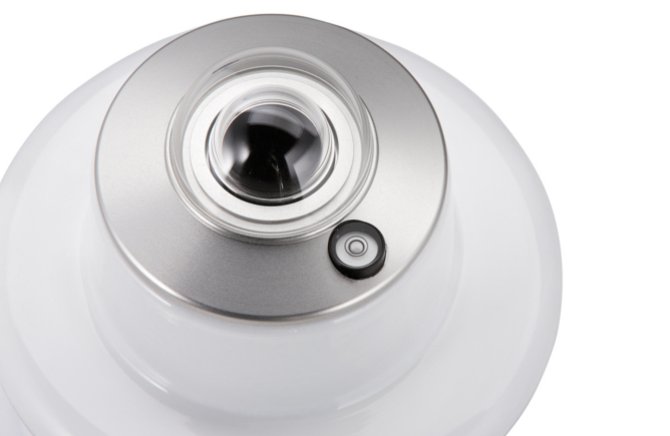

- First and only compact weather sensor with integrated Kipp & Zonen CMP10 Pyranometer with secondary standard quality
- Built-in data pre-processing, universal interfaces and selectable output protocols
- Compatible with many commercially available Met/HydroMet dataloggers and PLS systems thanks to an open communication protocol
- Maintenance-free operation – no moving parts that can wear out
- Suitable for all climate zones; also for solar-powered automatic meteorological stations
- Ventilated temperature and humidity measurement according to WMO guidelines
- Integrated heater that can be switched on if there is danger of frost
